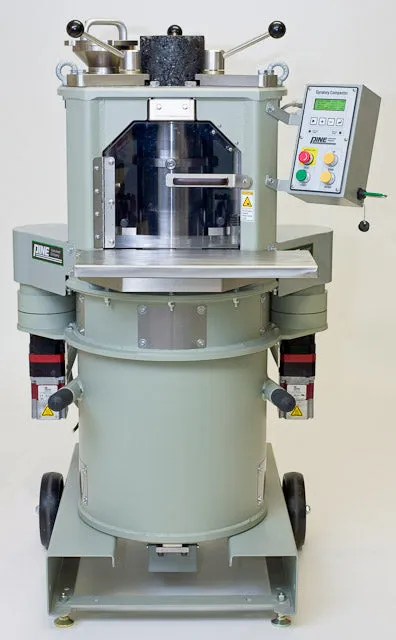

Pine G2 Gyratory - Superpave Gyratory Compactor
- Proven Pine Technology, superior customer service & craftsmanship
- Fully supported by HMA Lab Supply, Rainhart & InstroTek
- Sold Individually or as a Package
- For Pine G2 Spec Sheet, click
- Call for Pricing
| Number of Gyrations | 0—999 |
| Speed of Gyrations | 30 ±0.5 gyrations per minute |
| Compaction Force | 200—999 kPa |
| Angle of Gyration | 0.00—1.50° Selectable Internal / External |
| Mold Dimensions | 150 x 250mm and 100 x 250mm, Dia.xH |
| Specimen Size | Height: 0.00—200mm |
| Communication Port(s) | (2) USB ports and RJ45 Ethernet connector |
| Compaction Modes | Number of Gyrations, Height and Locking Point |
| System | Electromechanical |
| Data Acquisition | Gyration Number, Specimen Height, Angle of Gyration, Pressure, and Gyratory Shear (Optional) |
| Memory Capacity | Data for Last 20 Tests |
| Power Requirements | 115V / 50/60Hz, 12 Amp, 1 ph or 230V / 50/60Hz, 6 Amp, 1 ph |
| Product Dimensions | 34.5 x 35.5 x 54in (875 x 900 x 1,375mm), WxDxH |
| Net Weight | 850lb (396kg) |
| Estimated Shipping Weight | 1175lb (567.00kg) |
-
How often does a machine need calibrated?
- AASHTO R18 specifies that a gyratory compactor should be verified every 12 months.
- ASTM D6925-15 Section 6.2 specifies that a gyratory compactor should be calibrated annually or whenever there is reason to doubt the stability of the machine's operation.
- AASHTO R18 Section 6.2.1.3. specifies that equipment that may be affected by moving it to a new location or environment should be calibrated, standardized, or checked before being placed into service.
- ASTM D6925-15 Section 6.3 specifies that calibration should be verified after it is moved to a new location.
